Description

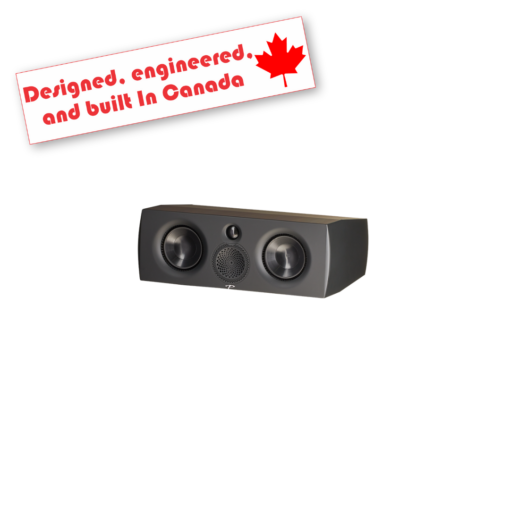

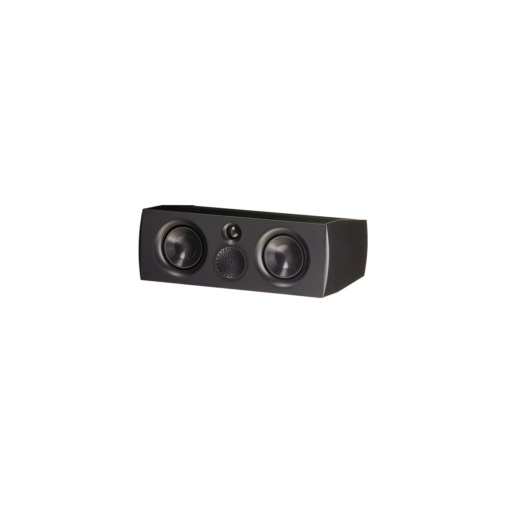

4-driver, 3-way acoustic suspension center channel

SPECIFICATIONS
DESIGN 4-driver, 3-way acoustic suspension center channel
FREQUENCY RESPONSE ON-AXIS ±3dB from 73 Hz – 25 kHz
HIGH FREQUENCY DRIVER 1” (25mm) X-PAL™ dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA™) Lens
MIDRANGE FREQUENCY DRIVER 4” (102mm) Black Anodized X-PAL™ cone, Perforated Phase-Aligning (PPA™) Lens
LOW FREQUENCY DRIVER Two 5-1/2” (140mm) ART™ Surround Carbon-Infused polypropylene cones
SENSITIVITY ROOM / ANECHOIC 92 dB / 89 dB
IMPEDANCE Compatible with 8 ohms
FINISHES Gloss Black, Gloss White, Espresso Grain
WEIGHT 26 lbs. (11.8 kg)
DIMENSIONS HXWXD 7.125″ × 20.125 × 13.75″ (18cm × 51.5 × 32cm)
LOW FREQUENCY EXTENSION 47 Hz (DIN)
CROSSOVER 2nd-order electro-acoustic at 2.5 kHz (tweeter/mid) and 600Hz (mid/woofers)
FREQUENCY RESPONSE 30° OFF-AXIS ±3dB from 73 Hz – 20 kHz
SUITABLE AMPLIFIER POWER RANGE 15 – 120 watts
MAXIMUM INPUT POWER 80 watts

Specifications are subject to change without notice.

DOWNLOADS
PREMIER SERIES MANUAL 3.22M
PREMIER SERIES DATASHEET 1.68M
PREMIER SERIES DIMENSIONAL DRAWINGS 937.85k
PREMIER SERIES REVIEW SUMMARY 1.95M
PREMIER SERIES BROCHURE 15.38M

Additional information

Finish

Gloss Black, Gloss White, Espresso Grain
