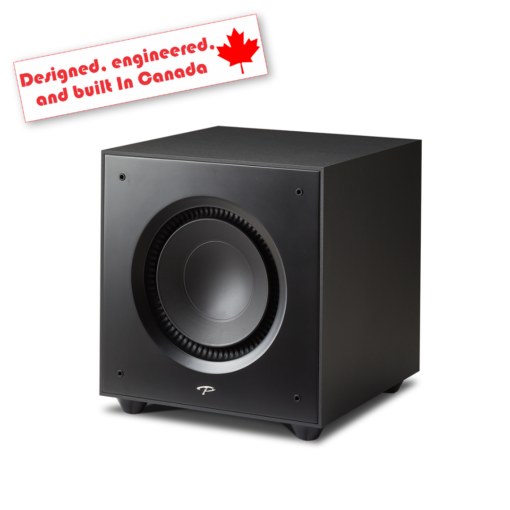

Ultimate, Uncompromising Bass.
12” Driver with Patented ART™ Surround, 650W RMS (1300W Dynamic Peak), App Control, High-Velocity Low-Turbulence Ported Design, Anthem Room Correction (ARC®) Included.
|DESIGN||12″ (305 mm) Driver with ART™ Surround, 650W RMS (1300W Dynamic Peak), Class-D amplifier, App controlled via smartphone, Anthem Room Correction (ARC®) Included.|
|AMPLIFIER||1300 watts Dynamic Peak; 650 watts RMS|
|AMPLIFIER FEATURES||Auto-On / Off, improved soft-clipping circuitry|
|FREQUENCY RESPONSE ON-AXIS||±3 dB from 20Hz – 230Hz|
|ROOM CORRECTION||Anthem Room Correction (ARC®) Included|
|LOW FREQUENCY DRIVER||12″ (305 mm) ART™ Surround with carbon-loaded polypropylene cone|
|SENSITIVITY ROOM / ANECHOIC||100mV mono (max. volume) /|
|IMPEDANCE||RCA: 10k ohms|
|WEIGHT||62 lbs. (28.1 kg)|
|LOW FREQUENCY EXTENSION||15 Hz (DIN)|
|LOW PASS FILTER FREQUENCY||Variable 30Hz – 120Hz|
|SUB / SAT PHASE ALIGNMENT||Variable 0° – 180° App or Control Panel|
|INPUTS||Three RCA (Left, Right, and LFE) for left/right lineout and/or Sub-Out from receiver/processor or other line-level source, Two Speaker Level (Left and Right) for input from amplifier or other speaker level source, One Micro USB for ARC™ and firmware u|
|COMPATIBLE PRODUCTS||Defiance WT Wireless Kit (sold separately)|
|DIMENSIONS HXWXD (INCLUDES GRILLE).||19 7/16″ × 18″ × 19 7/16″ (49.3cm × 45.7cm × 49.4cm)|
Specifications are subject to change without notice.
