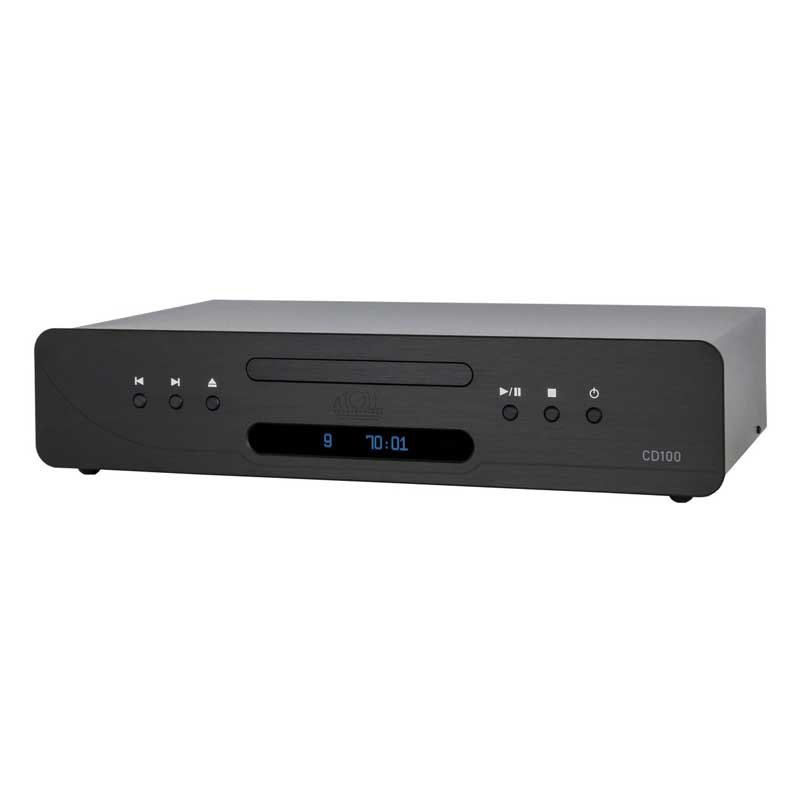

Atoll CD100 EVO CD Player

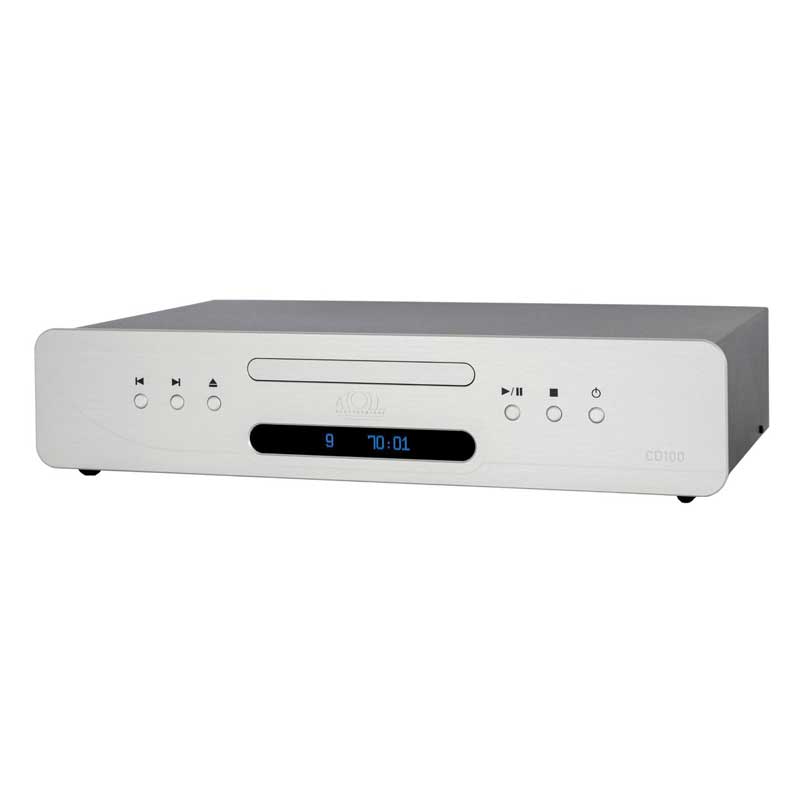

Atoll CD100 EVO CD Player - Image 2

Atoll CD100 EVO CD Player

MSRP $2279

The Atoll Electronique CD100 EVO Signature CD Player is a top-of-the-range model.

It is designed to ensure the most accurate playback of commercial CDs and burned CDs ( CD-R and CD-RW in MP3 , WMA or AAC formats ). To do this, it benefits from a pure class A analog output stage and a set of 5 power supplies. Signal conversion is entrusted to a high-precision Burr Brown PCM1796 DAC

Categories: , , , Tags: ,

Description

The Atoll CD100 Evo is a high-performance CD player at a great price, hand made by experts in Normandy, Northern France – it offers superlative  audiophile performance at a very realistic price.

The Evo Series CD players have benefited from many innovations, whether in terms of power supplies or audio and conversion stages. In addition, all of these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous



Features

  • 4 mm brushed aluminium front panel.
  • 10 regulated power supplies, including a specific low-noise one for the converter.
  • Linear power supply for digital stages with a specific 30 VA transformer.
  • Separate 10 VA linear transformers for audio stages.
  • 1,6 VA transformer (low consumption).
  • Original TEAC central CD mechanism (latest generation).
  • Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC.
  • Double-sided circuit boards with nickel/gold finish.
  • BURR-BROWN PCM1796 converter:
    – 24-bit/192 kHz.
    – Dynamic range: 124 dB.
    – Signal-to-noise ratio: 124 dB.
  • Low-power OLED display.
  • CD-Text display.
  • Differential audio output stages with discrete components biased in class A.
  • ATOLL global remote control.
  • Optional 24 bits/192 kHz digital card for all Evolution series CD players.



Outputs

1 Line digital outputs (right & left).
1 Coaxial digital output (to a converter D/A).
1 Optical digital output (to a converter D/A).
12V Trigger output.

Optional Digital Board

USB input (type B).
Digital input (Coaxial.).
Digital input (Optical).



Specifications

Outputs: 1 Line digital outputs (right & left)
1 Coaxial digital output (to a converter D/A)
1 Optical digital output (to a converter D/A)
12V Trigger output
Optional Digital Board: USB input (type B).
Digital input (Coaxial.).
Digital input (Optical).
Supply: 30 + 10 + 1.6 VA
Total of Capacitors: 21,450 µF
Converter: (D/A) PCM1796
Dynamic: 123 dB
Signal/Noise Ratio: 123 dB
Distortion at 1 kHz: 0.0005%
Output Level: 2.10 Vrms
Output Impedance: 5.6 Ω
Bandwidth: 5 Hz – 20 kHz
Rise Time: 2.0 µs
Standby Consumption: < 0.5 W
Operating Consumption: 10 to 19 W
Dimensions: (mm) 440×280×95
Weight: 6 Kg
