Description

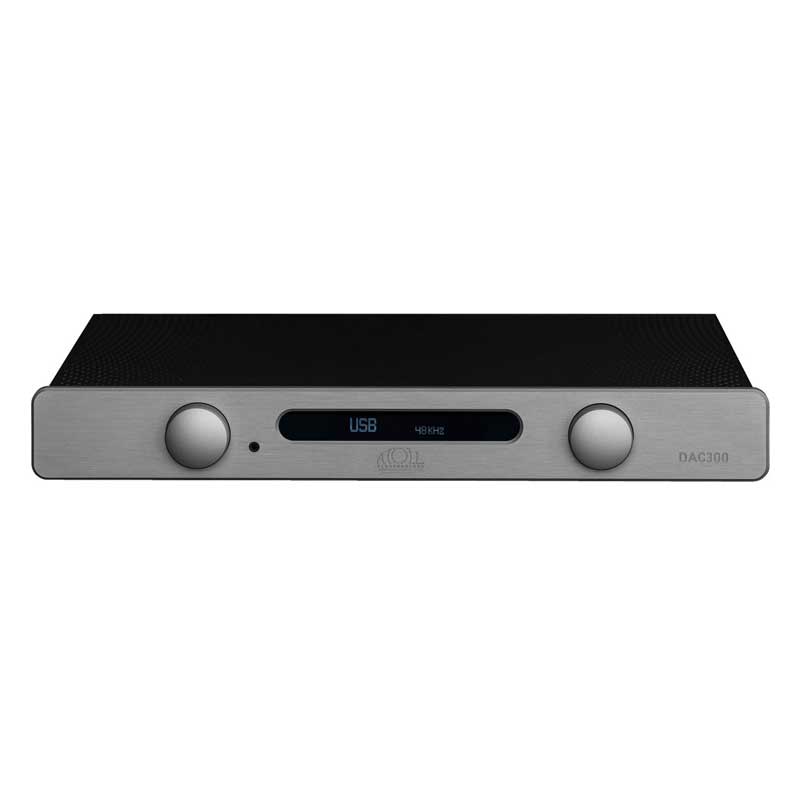

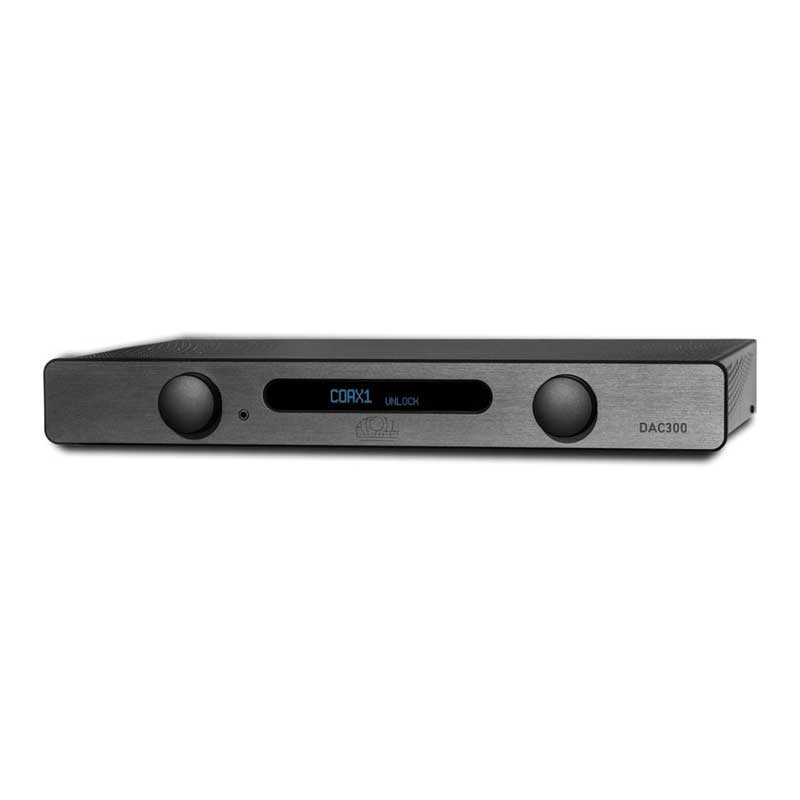

Atoll Electronique DAC300 Signature Converter
The Atoll Electronique DAC300 Signature Converter is distinguished by a careful design, which implements a dual power supply – for digital and analog circuits – to reduce interference.
The output stages in balanced configuration employ discrete components while the audio links use high quality MKP capacitors. This DAC also benefits from very good manufacturing quality, with a thick steel frame and a brushed aluminum front panel. The Atoll DAC300 DAC implements dual power supply – for digital and analog circuitry – to reduce interference.
Atoll DAC300: 32 bit / 768 kHz
The Atoll DAC300 DAC is an audiophile solution for exploiting digital audio files from a computer, in particular studio quality up to 32 bits and 768 kHz. Its asynchronous USB port, coupled with a powerful internal synchronization clock, contributes to reducing the distortion of the streamed digital stream. Ideally, such a DAC should be used with software compatible with the ASIO protocol (Foobar2000 under Windows and Audirvana under Mac OS).
Finally, Bluetooth wireless streaming is possible with the Atoll DAC300.44
Technical Specifications
Design
- ESS Saber 9038Pro with SABER ES9311EQ power supply
- Two independent toroidal transformers
- 12 independent voltage regulations
- Class A biased, non-feedback, discrete component output stages
- MKP capacitors
- 32-bit / 768 kHz USB
- controller 24-bit / 192 kHz S/PDIF controller
- Variable level outputs
- Remote control
Measurements
- Signal to noise ratio: 137 dB

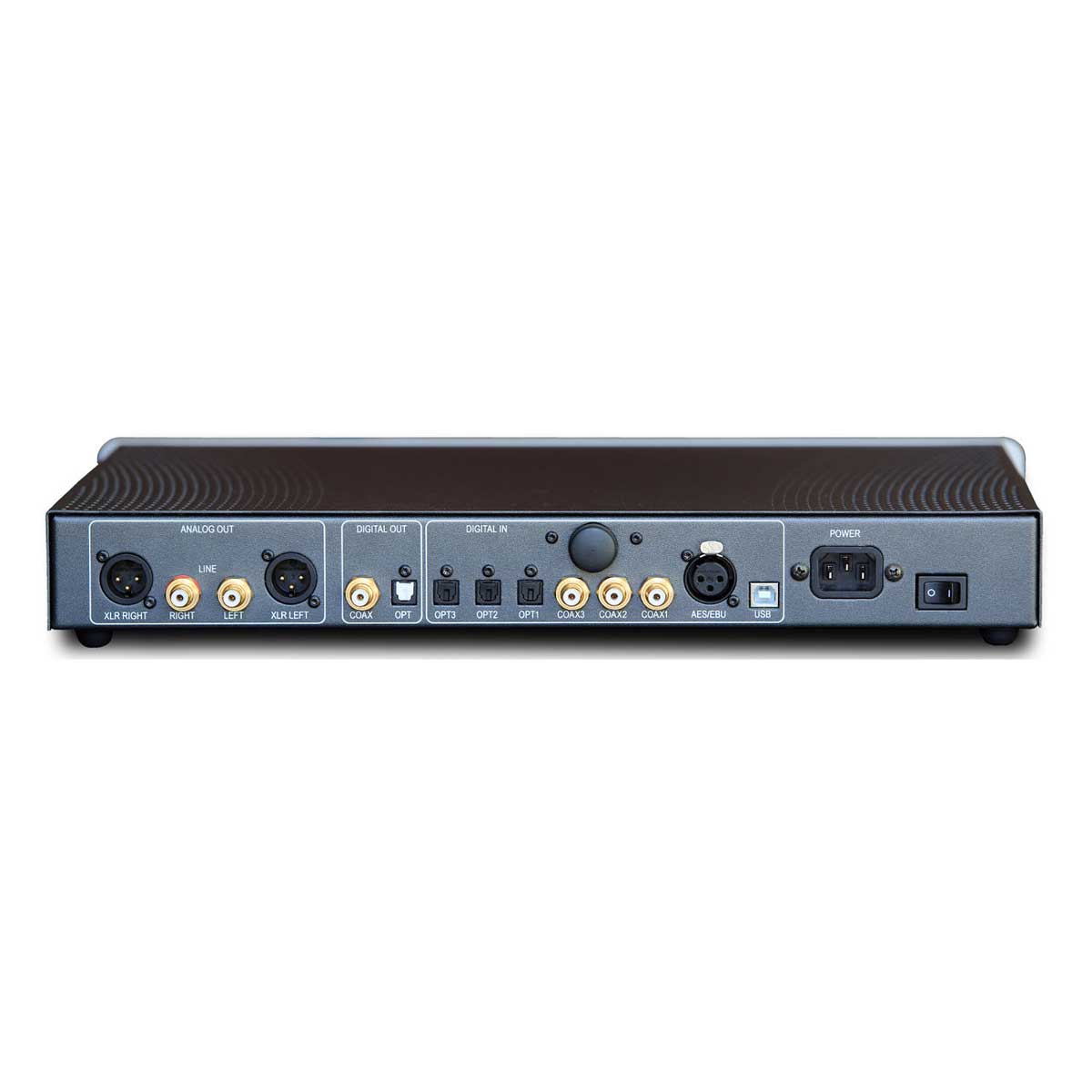

Connections
- 3x Toslink optical S/PDIF inputs and 1x output
- 3x RCA coaxial S/PDIF inputs and 1x output
- 1x AES/EBU
- input 1x USB type B input
- 1x stereo RCA
- output 1x stereo XLR
- output 1x headphone output
General
- Minimum consumption: 0.44 W (low mode) – 13.1 W
- Maximum consumption: 13.6 W
- Dimensions (lxhxd): 440 x 60 x 280 mm
- Weight: 4 kg
