Description

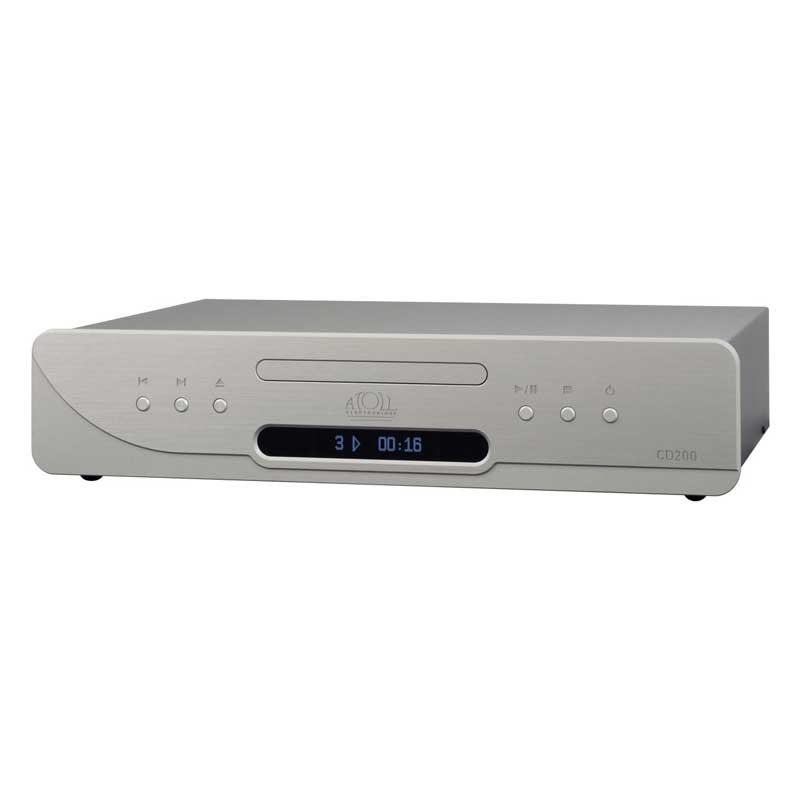

The Atoll CD200 Evo is a high-performance audiophile CD player at a realistic price, hand made by experts in Normandy, Northern France – it offers superlative audiophile performance at a very competitive price-point.
The Evo Series CD players have benefited from many innovations, whether in terms of power supplies or audio and conversion stages. In addition, all of these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.
Features
- 8 mm brushed aluminum front panel.
- 10 regulated power supplies including a specific low-noise one for the converter.
- Linear power supply for digital stages with specific 30 VA transformer.
- Separate 10 VA transformer for audio stages.
- 1.6 VA transformer (low consumption).
- Original TEAC central CD mechanics (latest generation).
- Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC.
- Double-sided circuit board with nickel/gold finish.
- BURR-BROWN PCM1792A converter:
– 24-bit/192 kHz.
– Dynamic range: 129 dB.
– Signal-to-noise ratio: 129 dB. - Low-power OLED display.
- CD-Text display.
- Differential audio output stages with discrete components biased in class A.
- ATOLL global remote control.
- Optional 24-bit/192 kHz digital card for all
- Evolution series CD players.
Specifications
| Outputs: | 1 Line digital outputs (right & left). |
| 1 Coaxial digital output (to a converter D/A). | |
| 1 Optical digital output (to a converter D/A). | |
| 12V Trigger output. | |
| Optional Digital Board: | USB input (type B). |
| Digital input (Coaxial). | |
| Digital input (Optical). | |
| Supply: | 30 + 10 + 1.6 VA |
| Total of Capacitors: | 21 450 µF |
| Converter (D/A): | PCM1792A |
| Dynamic: | 129 dB |
| Signal/Noise Ratio: | 129 dB |
| Distortion at 1 kHz: | 0.0004% |
| Output Level: | 2.65 Vrms |
| Output Impedance: | 5.6 Ω |
| Bandwidth: | 5 Hz – 20 kHz |
| Rise Time: | 2.0 µs |
| Standby Consumption: | < 0.5 W |
| Operating Consumption: | 10 to 19 W |
| Dimensions (mm): | 440 × 284 × 95 |
| Weight: | 7 Kg |
